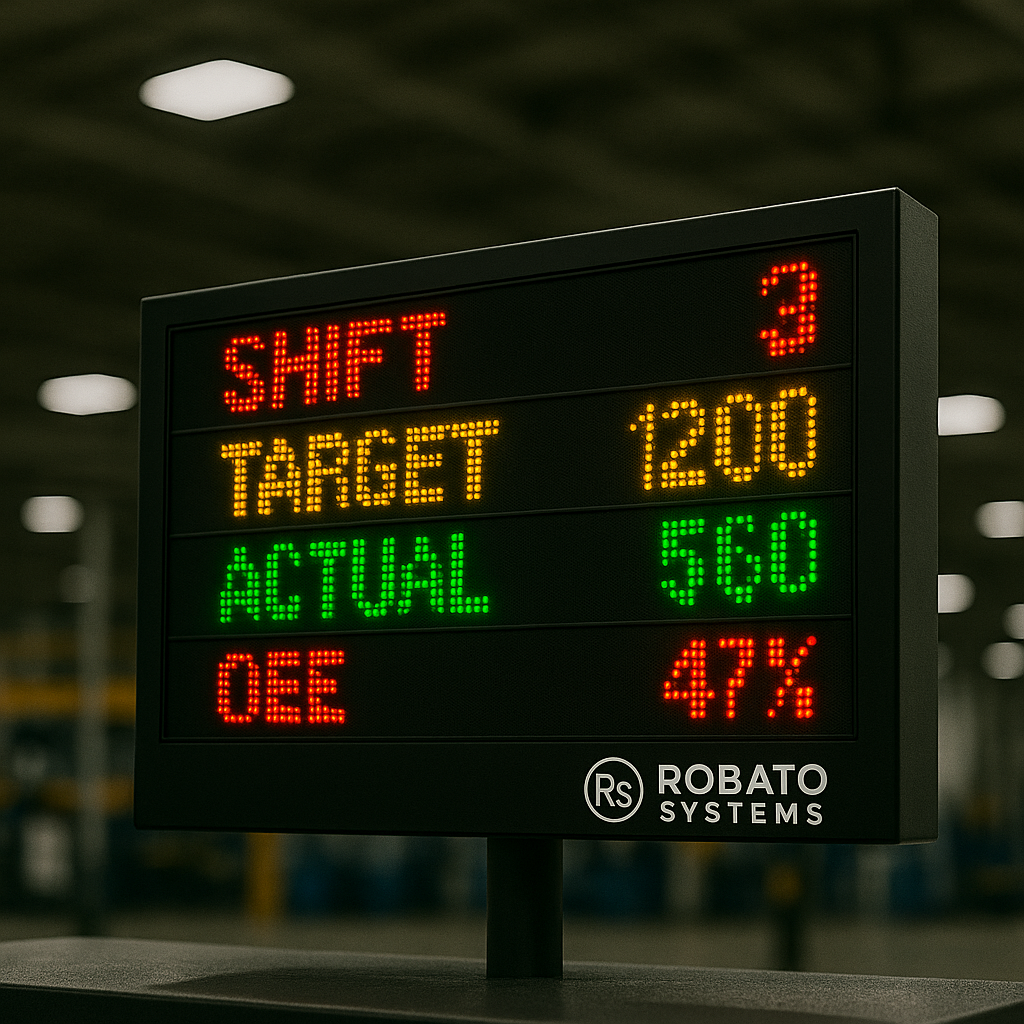

Large Production Display Board

High-visibility LED factory display

The Large Industrial Production Display Board from Robato Systems is designed for factory shop floors where production data must be visible from long distances. Featuring big LED digits (2–12 inches), multi-row layout and support for WiFi/Ethernet, PLC input, sensor integration and cloud/on-prem software, this display board is the go-to solution for real-time visibility in manufacturing plants.

Call now
Large LED production display board hanging in a factory hall: job ID, target, actual, rejection, efficiency and status
LINE-1 on the board: job, target, actual, rejection, efficiency, downtime and status, readable across the hall
LED digit height, or custom
2–12 in
Viewing distance across the shop floor
20–150 m
Industrial metal body, built for continuous operation
24/7

On the board

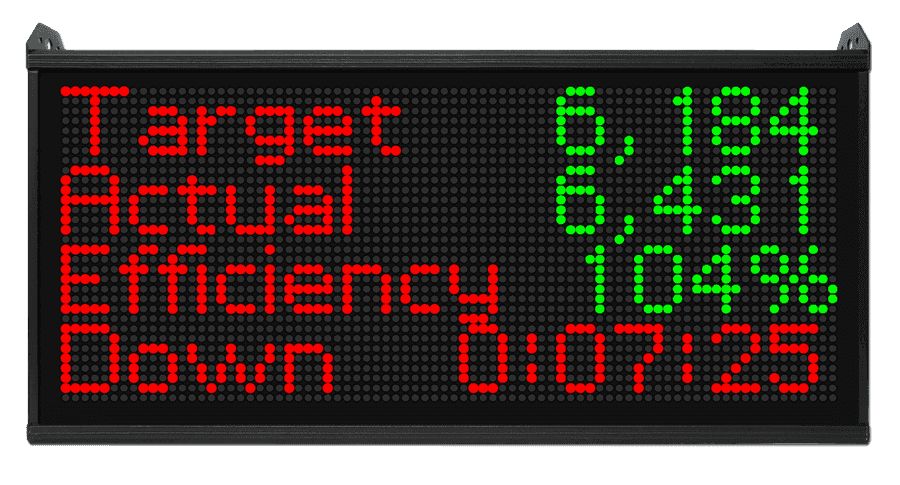

Big LED production display for shop-floor performance visibility

This large-format LED Production Display Board acts as the central information hub on the factory floor. Operators, supervisors and managers can instantly see critical production metrics at a glance.

  1. Job ID PRD-4587 Job ID, batch number, operator name
  2. Target 5000 Target production for the shift
  3. Actual 4125 Actual production output
  4. Rejection 125 Rejection count
  5. Efficiency 82% Efficiency percentage
  6. Downtime 24 min Downtime indicators
  7. Status Running Machine status: running, idle or down

Example readings: LINE-1 in the photo above.

This helps improve production control, boost accountability and support lean manufacturing practices across your entire facility.

Inputs

Display and connectivity options how the board gets its numbers

Multiple integration methods to suit your production environment: count from sensors, take data straight from a PLC, sync with production software, or set it up from an Android app.

A production display board fed by sensor-based counting, PLC integration, production software sync and Android app control
The four inputs, numbered as below, and the board's specifications along the footOpen full size

  1. Sensor-Based Counting

    • Connect IR/proximity/photoelectric sensors for automatic increments
    • Real-time production counting without manual intervention
    • Configurable pulse settings for accurate counting

  2. PLC Integration

    • Ideal for automated production lines
    • Receives data directly from PLC outputs
    • Seamless integration with existing automation systems

  3. Production Software Sync

    • Automatic fetch of Target Count, Actual Count, Efficiency
    • Machine Status and Shift Parameters sync
    • Real-time Downtime Alerts and notifications

  4. Android App Control

    • Change display settings and brightness wirelessly
    • Configure rows, job numbers and pulse settings
    • Quick commissioning and easy parameter adjustments

Features

Key features of the large display board

Comprehensive high-visibility display capabilities for factory shop floors.

  1. Big LED Digits (2–12 inches)

    Visible from 20 to 150 metres

    • Long-range visibility
    • Multiple digit size options
    • Clear viewing from distance

  2. Red or RGB LED Options

    RGB for colour-coded status and alerts

    • Ultra-bright red LED
    • RGB multi-colour display
    • Status colour indicators

  3. Multi-Row Display

    Target, Actual, Efficiency, Rejection and more

    • Multiple data rows
    • Comprehensive metrics
    • All KPIs at a glance

  4. WiFi/Ethernet Connectivity

    Network-enabled for real-time updates

    • WiFi network support
    • Ethernet LAN connection
    • Real-time data sync

  5. Sensor, PLC & Software Inputs

    Accepts pulses, PLC outputs and cloud data

    • Sensor pulse input
    • PLC integration
    • Software data sync

  6. Android App Configuration

    Set parameters and row layout wirelessly

    • Wireless configuration
    • Parameter settings
    • Row layout control

  7. Cloud & On-Prem Connectivity

    Sync with dashboards, mobile and TV displays

    • Cloud SaaS sync
    • On-premise server
    • Multi-device access

  8. Industrial Metal Body

    Rugged design for 24/7 operation

    • Heavy-duty construction
    • 24/7 continuous operation
    • Factory-grade durability

  9. Customisable Layout

    Rows, columns and data fields tailored to your needs

    • Custom row configuration
    • Flexible column layout
    • Tailored data fields

Specifications

Technical specifications of the display board

Digit Size
2–12 inches or custom
LED Type
Ultra-bright Red or RGB
Connectivity
WiFi, Ethernet
Inputs
Sensor, Push Button, PLC
Data Sources
Cloud SaaS, On-Prem Server, API/MQTT
Mounting
Wall, hanging or gantry mount
Power
110–240V AC / Optional 24V DC
Body Material
Industrial-grade steel or aluminium

Why choose Robato Systems

Benefits of a large production display board

Production display board above a factory line, fed by sensor, PLC, Ethernet/WiFi and cloud inputs and set up from a tablet
Sensors, PLC, network and software feed the board; the same figures reach the supervisor's tablet, phone and dashboard
  1. Improves factory-wide visibility of KPIs
  2. Enhances shift-based reporting and transparency
  3. Supports lean manufacturing and Kaizen initiatives
  4. Reduces errors by centralising production data
  5. Makes daily review meetings more effective

Applications

Applications on the factory floor

  1. Assembly lines & production cells
  2. Automotive OEMs & Tier-1 suppliers
  3. Textile factories & loom halls
  4. Pharmaceutical manufacturing
  5. Electronics & PCB lines
  6. FMCG packaging units

Explore more

More production displays and the software around them

Explore our complete range of production counter displays for single machines, multi-machine setups, and factory-wide monitoring.

Questions

Frequently asked questions

It is a big LED display board designed for factory shop floors to show production metrics such as target, actual, rejection, efficiency, downtime and shift data.

Digit sizes range from 2 inches to 12 inches or more, based on customer visibility requirements and viewing distance.

Yes. The display supports both WiFi and Ethernet connectivity for communication with cloud or on-prem software.

Yes. It can display Target, Actual, Rejection, Efficiency, Downtime, Job ID and shift information together in multi-row format.

Yes. It accepts inputs from sensors, PLCs and production software for real-time updates.

Yes. You can manage display settings, row configuration and brightness using a supported Android application.

Yes. The display supports cloud SaaS connectivity for multi-machine dashboards and supervisor views.

Yes. Layout, LED size, colour, rows, columns and mounting style can be customised to match factory requirements.
